Arista Networks Access Points


Arista Networks Access Points

COGNITIVE WIFI

High performance, intelligent access points

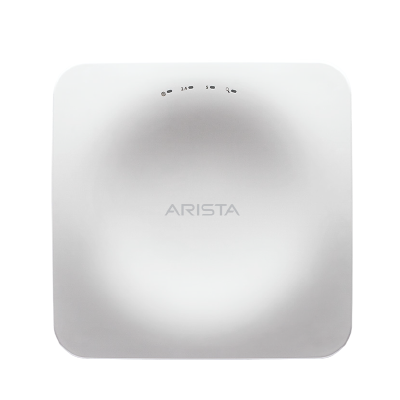

C-130 Transparent BG

Intelligent Access Points

Arista access points are intelligent and self-reliant, meaning they store all network and security policies locally and process client requests, monitor wireless connections and store network statistics at the edge. They deliver reliable, high performing networks that are feature rich without the need for a controller.

FEATURES

No Disruption

Arista access points are 100% operational even when the cloud connection is interrupted so your networks never suffer due to WAN outages

Performance

Local storage of configurations and security policies allow Arista access points to respond much faster to improve network performance and neutralise wireless threats

Cost Effective

See your network costs drop over 50% when controllers and their resource requirements are completely removed

WI-FI 6 ACCESS POINTS

Arista-C-360

C-360

Quad radio, 4X4 6GHz, 4X4 5GHz, 4X4 2.4GHz and 2×2 tri-band scan radio Wi-Fi 6E access point

Arista C-360 is a high-end Wi-Fi 6E enterprise grade access point featuring concurrent 6GHz, 5GHz and 2.4GHz 4 stream 802.11ax operation , integrated BLE/Zigbee IoT support and an additional multi-function, tri-band radio to provide security, network assurance and enabled and AI/ML driven troubleshooting.

C-250

C-260

Tri radio, 8X8 5GHz – 4X4 2.4GHz – 2×2 Dual-band scan radio Wi-Fi 6 access point

Arista C-260 is an enterprise-grade, 12 stream Wi-Fi 6 AP with dual concurrent 5 GHz and 2.4 GHz band radios supporting 8 stream 802.11a/n/ac/ax, 4 stream 802.11b/g/n/ax and data rates of up to 4.8 Gbps and 1.4 Gbps, respectively. It also has a 2.4GHz Bluetooth Low Energy (BLE) radio.

C-250

C-230

Tri radio, 4X4 5GHz – 2X2 2.4GHz – 2×2 Dual-band scan radio Wi-Fi 6 access point

The Arista C-230 is an enterprise-grade, 6 stream Wi-Fi 6 AP with dual concurrent 5 GHz and 2.4 GHz band radios supporting 4 stream 802.11 a/n/ac/ax, 2 stream 802.11 b/g/n/ax and data rates of up to 2.4 Gbps and 0.6 Gbps, respectively. It also has a 2.4GHz Bluetooth Low Energy (BLE) radio.

Arista O-235

O-235

Tri radio, 4X4 5GHz – 2X2 2.4GHz – 2×2 Dual-band scan radio Wi-Fi 6 access point

The Arista O-235 is a ruggedized enterprise-grade, outdoor 6 stream Wi-Fi 6 AP with dual concurrent 5 GHz and 2.4 GHz band radios supporting 4 stream 802.11 a/n/ac/ax, 2 stream 802.11 b/g/n/ax and data rates of up to 2.4 Gbps and 0.6 Gbps, respectively. It also has a 2.4GHz Bluetooth Low Energy (BLE) radio.

C-250

C-200

Dual radio, 2×2 5GHz – 2×2 2.4GHz Wi-Fi 6 Access Point

Arista C-200 is an enterprise-grade, 4 stream Wi-Fi 6 AP with dual concurrent 5 GHz and 2.4 GHz band radios supporting 2 stream 802.11 a/n/ac/ax, 2 stream 802.11 b/g/n/ax and data rates of up to 1.2 Gbps and 574 Mbps, respectively.

WI-FI 5 ACCESS POINTS

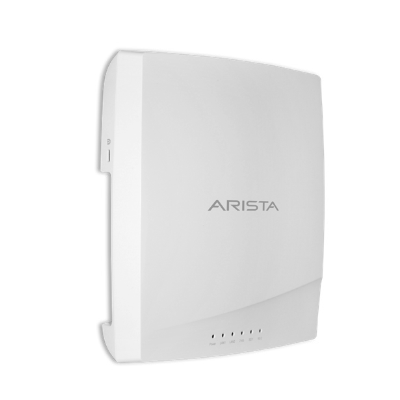

Arista C-110

C-110

Indoor, tri radio 2×2:2 MU-MIMO 802.11ac Wave 2 access point

The Arista C-110 is an enterprise-grade 2×2 MU-MIMO tri-radio 802.11ac access point with dual concurrent 5 GHz and 2.4 GHz radios supporting 802.11a/n/ac Wave 2, 802.11b/g/n, two spatial streams, and data rates of up to 876 Mbps and 300 Mbps, respectively. It also contains a third 2×2 MIMO 802.11ac radio for dedicated multifunction scanning and a fourth 2.4 GHz Bluetooth Low Energy (BLE) radio.

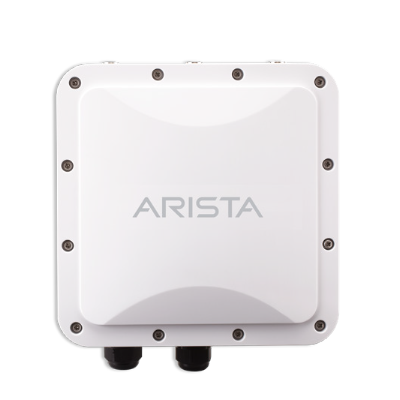

Arista O-90

O-105

Outdoor, 3×3:3 MIMO access radio, up to 1.3 Gbps

The Arista O-105 is a ruggedized enteprise-grade 2×2 MIMO 802.11ac outdoor access point with dual concurrent 5 GHz and 2.4 GHz band radios supporting 802.11a/n/ac, 802.11b/g/n, two spatial streams and data rates of up to 867 Mbps and 400 Mbps, respectively and a third 2.4 GHz Bluetooth Low Energy (BLE) radio.

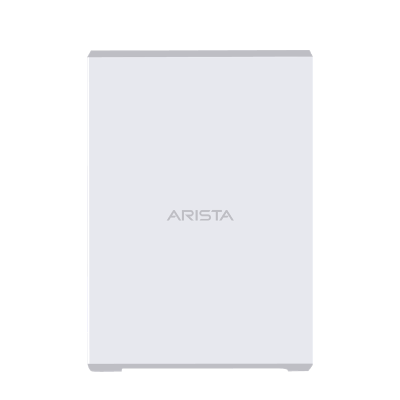

Arista W-118

W-118

Indoor, 2×2:2 MIMO access radio, up to 867 Mbps

The Arista W-118 is an enterprise-grade 2×2 MU-MIMO tri-radio 802.11ac wall plate access point with dual concurrent 5 GHz and 2.4 GHz radios supporting 802.11a/n/ac Wave 2, 802.11b/g/n, two spatial streams, and data rates of up to 876 Mbps and 300 Mbps, respectively. It also contains a third 2×2 MIMO 802.11ac radio for dedicated multi-function scanning and a fourth 2.4 GHz Bluetooth Low Energy (BLE) radio.

CLOUDVISION WIFI

CloudVision Wi-Fi is at the core of Arista’s cloud-native approach to enterprise Wi-Fi networks. It enables centralized management of APs which remarkably simplifies policy management and provisioning of Wi-Fi networks. At the network edge, APs are equipped with distributed algorithms to handle control plane functions locally. This decoupling of management and control planes, along with a flexible data plane that allows wireless access points to provide customizable traffic redirection at the network’s edge, results in a more robust network, without a single point of failure. Thus, CloudVision Wi-Fi enables seamless scaling of the network from a few to 1000s of APs.

CloudVision-WiFi-Diagram

With virtually unlimited and elastic availability of storage and compute resources, the Arista Wi-Fi solution eliminates artificial boundaries inherent in controller-based WLAN architectures. Naturally, it enables many innovative, previously unforeseen applications in big data analytics, machine learning and cognitive computing in the context of Wi-Fi.

Key Features

CloudVision Wi-Fi is powered by a cognitive management plane which simplifies configuration and troubleshooting while delivering richer telemetry to network administrators. The innovative cognition plane uses AI and ML techniques to provide root cause analysis and proactive problem resolution options to reduce the mean time to resolve problems, minimizing network troubleshooting effort and reducing total cost of ownership.

Network BaseliningBaselines network behaviour and automatically detects and highlights anomalies, using ML algorithms.
Root Cause Analysis EngineAutomatically detects and classifies Wi-Fi clients’ connection failures and pinpoints the root cause in real-time.
Single Client InferencingIdentifies clients facing poor QoE, based on RF, network and application KPIs and performs root cause analysis for specific clients.
Automatic Packet CaptureProactively captures packet traces to help diagnose problems; traces are stored alongside related failures or symptoms to simplify troubleshooting later.
Client Emulation and Network ProfilingTakes advantage of the multi-function radio, present in most Arista Wi-Fi APs, turning it into a client to run a wide variety of tests and proactively identify problems before users do.



The Cognitive Management Plane is driven by Arista’s NetDB, a state-based, cloud-hosted, network-wide database that collects real-time data streamed from wired and wireless devices for cognitive analytics. CloudVision Wi-Fi’s capabilities can be extended further by integration with 3rd party applications using OpenConfig and Arista’s ReST API framework.

With a multi-function radio acting as a dedicated wireless intrusion prevention (WIPS) sensor, wireless threats are detected and blocked almost instantly in your network. CV Wi-Fi works with the APs, which are powered by patented techniques such as Marker PacketsTM, to enable surgical over-the-air intrusion prevention, automatically and accurately creating alerts and classifying wireless threats. CloudVision Wi-Fi uses behavior based detection of threats; rather than a signature based approach; to enable zero day protection without chasing exploits, tools and their signatures.



CV Wi-Fi supports flexible end user access management in enterprise Wi-Fi networks by enabling seamless integration with leading identity management solutions such as Aruba ClearPass, ForeScout NAC, Cisco ISE etc. Arista Guest Manager provides multiple ways for guest access in the enterprise including Guestbook, vouchers, OTP-based etc.
