Additional information
| Dimensions | 109.2 × 109.2 × 53.3 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | GPS: 28 dBi / LTE: 3 dBi / WiFi: 2 dBi |
| Beamwidth - Horizontal | 360° |
| Beamwidth - Vertical | 90°/70°/90° |
| Cable Length | 457mm |
| Cable Type | RG174 |
| Connector Type | SMA & RPSMA |
| Frequency Rating | 698-960/1575.42-1610/1710-2690/2400-2483/4900-5825 |
| Antenna Type | Omni Antenna |
| Impedance | 50 Ohms |
| Indoor/Outdoor | Outdoor |

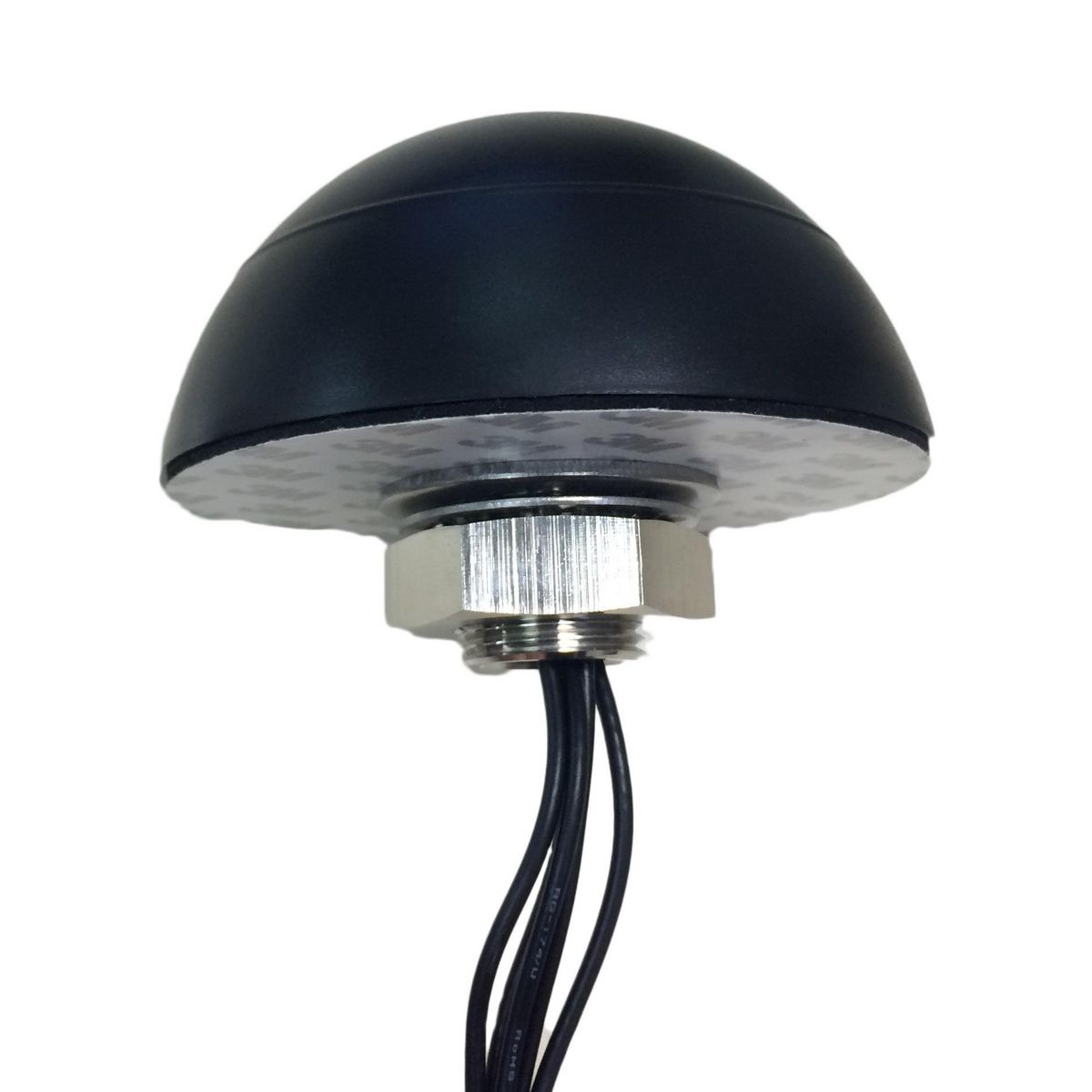

| Installation Type | Threaded Bolt with Nut |
| Number of Leads | 7 |
| Operating Temperature | -40 to 85 °C |
| Polarisation | GPS: Right Hand Circular, LTE: Linear, WiFi: Linear |
| Wi-Fi Standard | 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4) |
| Voltage Ratio | < 2.0-3.0 |
