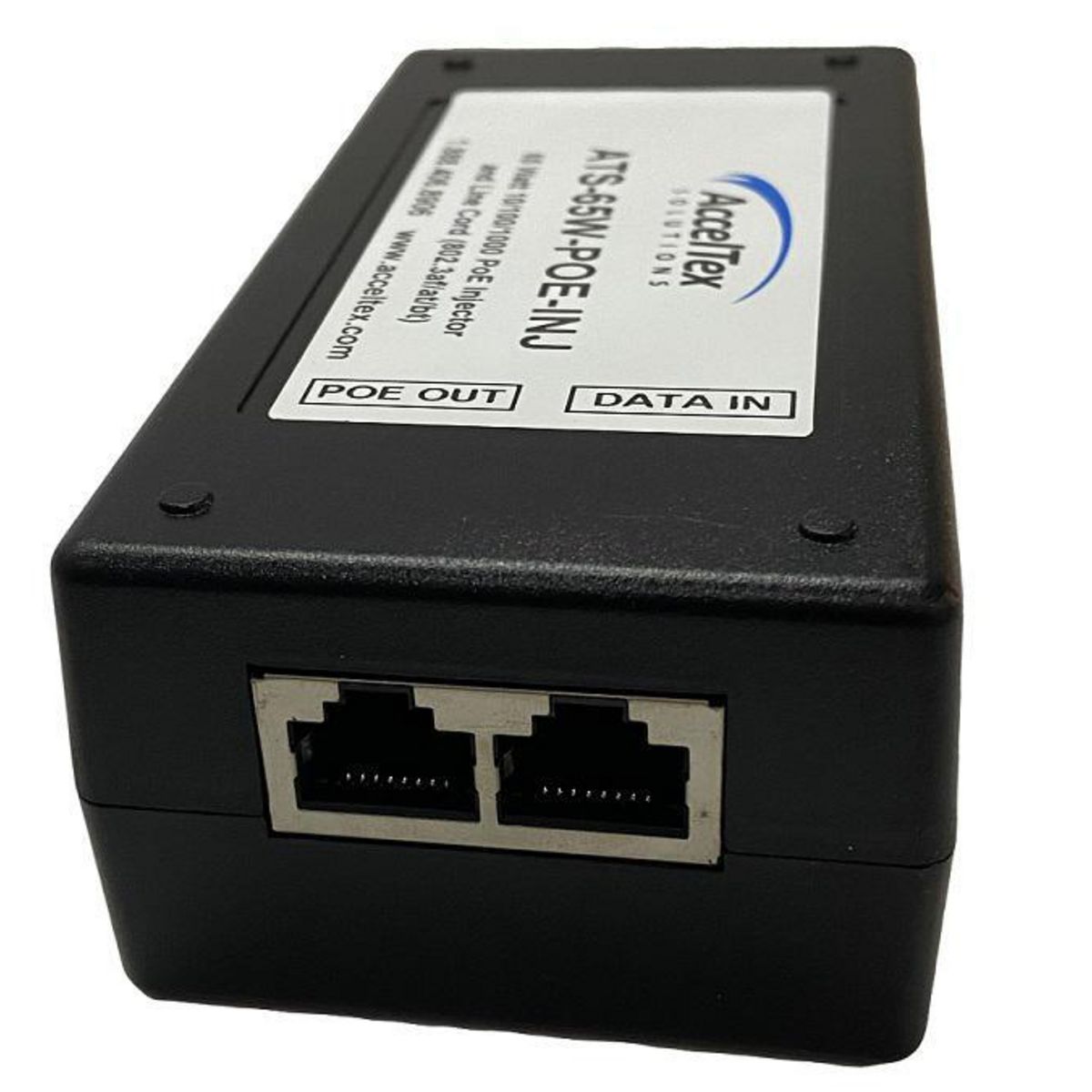

ATS-00449 (former catalog number ATS-65W-POE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with a U.S. AC line cord and has upstream port lightning protection.
| Dimensions | 59.9 × 121.9 × 39.9 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Connector Type | (2) RJ-45 Jacks |
| Humidity | 10% to 90% RH (non-condensing) |
| Indoor/Outdoor | Indoor |
| Input | AC 100-240V 50/60HZ |
| Installation Type | Surface Mount |
| Operating Temperature | 0 to 40 °C |
| Output Voltage | 52 VDC |
| Storage Temperature Range | -40 to 158° F (-40 to 70° C) |
| PoE | 802.3af, 802.3at |
ATS-00445 (former catalog number ATS-60W-POE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with an AC line cord with US plug and can be flush mounted or DIN rail mounted.
ATS-00448 (former catalog number ATS-65W-OD-POE-INJ). The ATS-00448 is a dependable outdoor single port midspan solution that supports 802.3af/at powered devices. It can be powered using DC or AC voltage and comes with built in surge protection. All ports utilize IP65 rated connectors.
ATS-02876 (former catalog number ATS-90W-POE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in under voltage, over voltage, over current and short circuit protection. The ATS-90W-POE-INJ provides a data rate up to 10G. Each injector ships with a U.S. AC line cord.
ATS-00447 (former catalog number ATS-60W-UPOE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with an AC line cord with US plug and can be flush mounted or DIN rail mounted.
ATS-00448 (former catalog number ATS-65W-OD-POE-INJ). The ATS-00448 is a dependable outdoor single port midspan solution that supports 802.3af/at powered devices. It can be powered using DC or AC voltage and comes with built in surge protection. All ports utilize IP65 rated connectors.
ATS-00445 (former catalog number ATS-60W-POE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with an AC line cord with US plug and can be flush mounted or DIN rail mounted.
ATS-00447 (former catalog number ATS-60W-UPOE-INJ). The AccelTex Solutions PoE Injector converts AC line voltage into PoE and includes built in over voltage, over current and short circuit protection. Each injector ships with an AC line cord with US plug and can be flush mounted or DIN rail mounted.
