Additional information
| Dimensions | 350.5 × 350.5 × 35.6 mm |
|---|---|
| Vendor | AccelTex Solutions |
| Country of Origin | China |
| Antenna Gain | 13 dBi |
| Beamwidth - Horizontal | 15° |
| Beamwidth - Vertical | 120° |
| Cable Length | 910mm |
| Cable Type | RG402 Plen |
| Connector Type | DART |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |

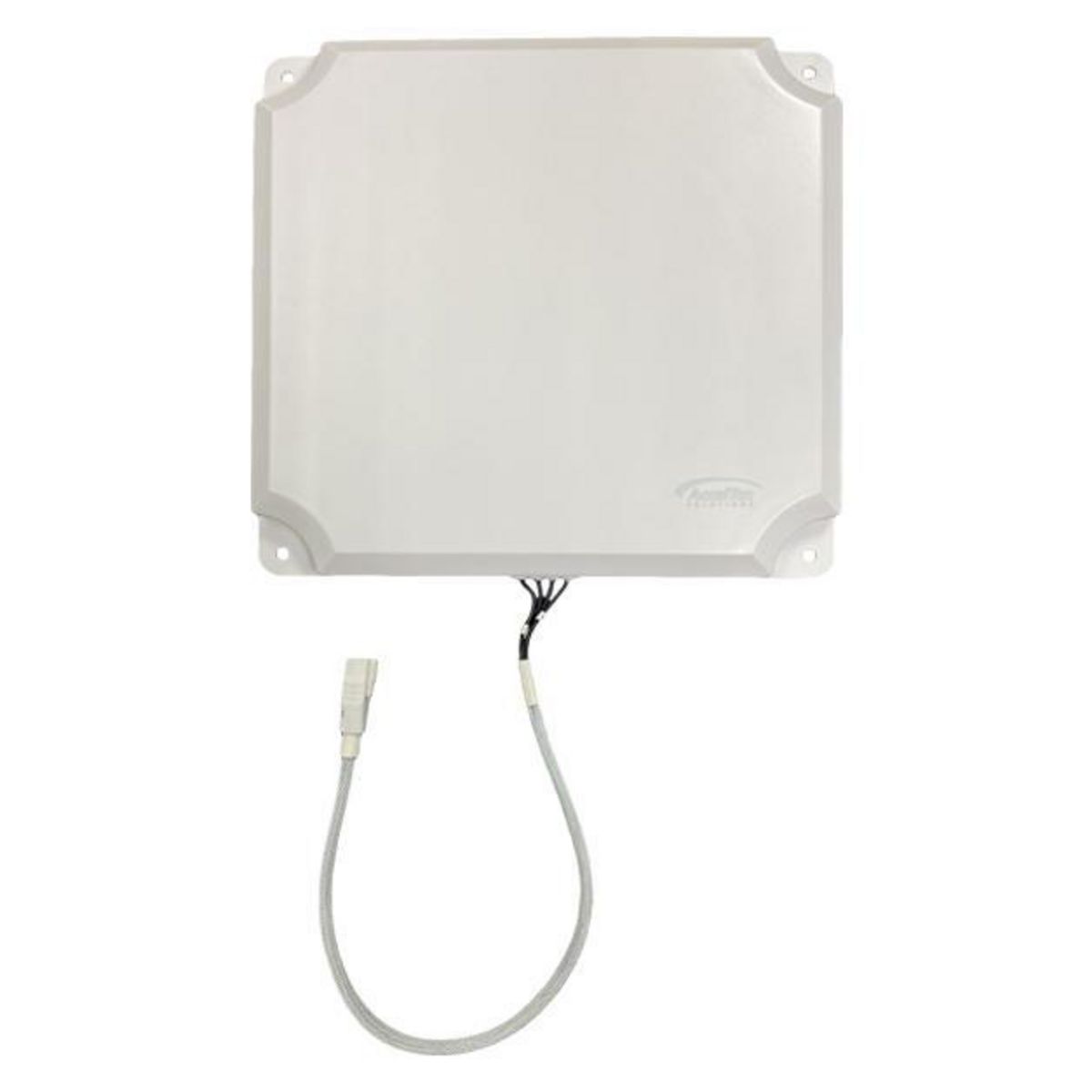

| Antenna Type | Patch Antenna |
| Impedance | 50 Ohms |
| Indoor/Outdoor | Indoor/Outdoor |
| Input Power - Max | 50 W per port |
| Installation Type | Flush Mount to Wall or Articulating Wall/Pole Mount |
| Isolation Loss | ˃30 dB |
| Radome Material | ABS |
| Number of Leads | 4 |
| Operating Temperature | -40 to 70 °C |
| Polarisation | Horizontal |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4) |
| Voltage Ratio | < 1.5:1, Max 2.0 |
| Windage | 134 mph (216 km/h) |
