Observer Aggregation Network TAPs

Transfer network traffic from a full-duplex copper link to a copper analysis or security device in a single stream

Install Observer Aggregator nTAPs on 10 Mb, 100 Mb, or 1 Gb links for quick, anytime access to network traffic. Designed for low-to-moderate utilisation full-duplex links, Aggregator nTAPs merge data into single streams for transmission up to two single-receive analysis devices. Industry-leading buffer sizes offer less likelihood of lost packets than SPAN ports to ensure critical traffic reaches analysers, remote monitoring appliances, and forensics tools. For networks and analysers of different topologies, an Observer Conversion Aggregator nTAP is available.

nTAPs are passive, full-duplex devices, offering complete visibility to monitoring devices regardless of traffic level. They work with the leading management tools for quick and easy deployment. nTAPs are transparent for monitoring critical links, and provide continuous network data flow even if power fails. nTAPs are scalable, modularised, space efficient, and economical.

How they are deployed

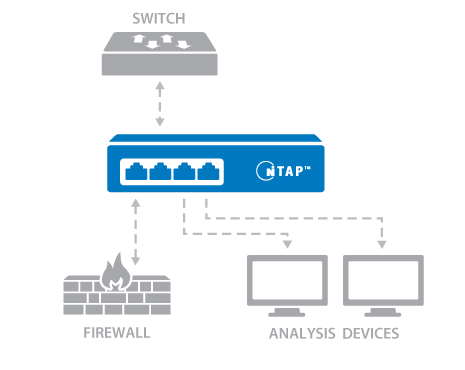

Place an Aggregator nTAP between two devices of interest on a 10 Mbps, 100 Mbps or 1000 Mbps copper link. Then attach up to two analysis or security devices to the nTAP. The device must be equipped with a standard network card.

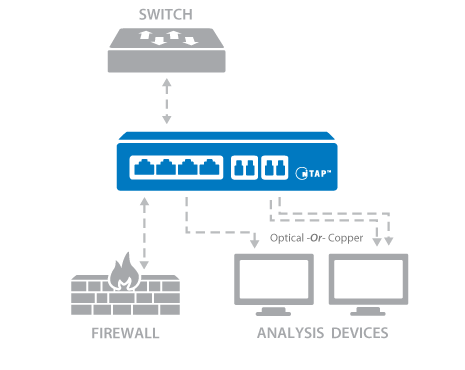

Place an Aggregator Conversion nTAP between two devices of interest on a 10 Mbps, 100 Mbps or 1000 Mbps copper link. Then attach up to two analysis or security devices to the nTAP: two copper, or two optical, or one of each. The device must be equipped with a standard network card.

Place an Optical to Copper nTAP between two devices of interest on a 1Gbps full-duplex optical link. Then attach a 1Gb copper monitoring device to the nTAP. To successfuly analyze the full-duplex output from the TAP, the monitoring device must be equipped with a dual-receive capture card.
