The Ultimate Wireless Site Survey Kit

The HiveRadar Wireless Site Survey Kit (WSSK) is unlike anything on the market today. With a compact and rugged design loaded with all the tools you need: custom battery with cables, mounting pole, articulating arm, laser distance measure, powerful LED flashlight, and multi-tool.

Contents

Universal Rail Mount for Access Points

The sleek & lightweight articulating mount is perfect for positioning the Wi-Fi Access Points in either Ceiling or Wall Mount deployment configuration. The mount replicates a ceiling rail making it universal & compatible with nearly all access points.

HiveRadar Articulating Arm
HiveRadar Multi-Tool

Multi-Tool

Airline friendly Multi Tool includes: hex wrenches: #2, 2.5, 3, 4, 5, 6, 8 / open wrench: 8mm, 10mm / screwdrivers: phillips #1, phillips #2, flat #2 / torx: t­10, t­25 & for cycling enthusiasts ­ a bike chain repair tool with a stainless steel carrying case.

LED Flashlight

Rechargeable LED Flashlight at 1200 lumens is super bright. Integrated intensity control, strobe and SOS mode provide upto 12 Hrs* of runtime. There is a USB input charging port and also a USB output port for emergency power to your mobile device.

HiveRadar Flashlight
HiveRadar Laser Measure

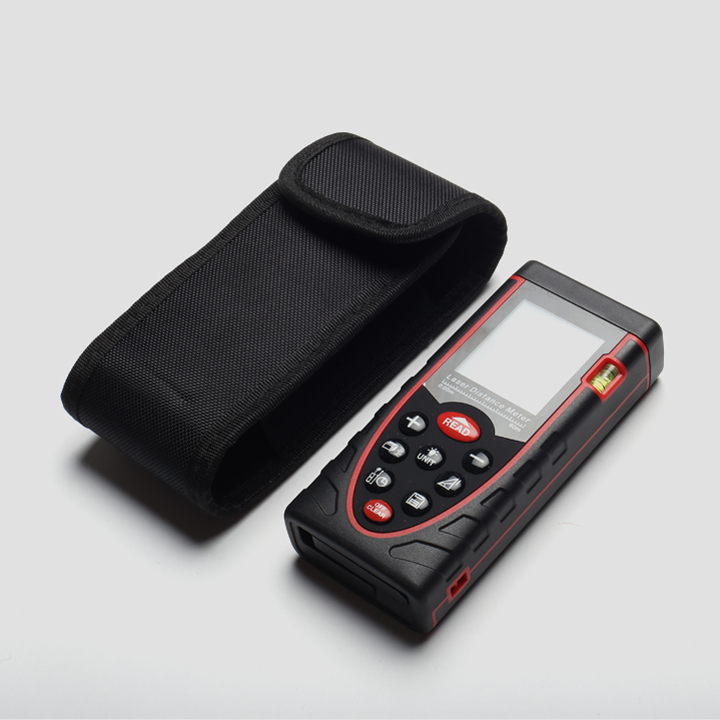

Laser Distance Measure

A Laser Distance Measure is a must for scaling floorplans on site. Included unit accurately measures up to 60m or 196ft. These units can also calculate Area, Volume, etc.

Carbon Fibre Mounting Pole

Our custom made carbon fibre poles are thick cross­layered carbon fibre tubes for maximum rigidity and durability. Extremely lightweight, easy to assemble with quick twist lock mechanism, it is also multi­functional i.e can be used as a camera tripod.

HiveRadar Carbon Fibre Pole
HiveRadar Braided Cables

Premium Braided Cables

All cables are custom made and encased in thermal sleeves to provide a sleeker look that seamlessly integrates with the case’s aesthetic. Velcro cable ties are strategically incorporated for tangle­free, clean and secure connection to the mounting pole.

Custom Power Connectors

Custom DC power connectors are incorporated into the case. All external connections are secure and waterproof. Also included waterproof RJ45 & USB connectors, making it a truly versatile unit for Internet connectivity on the job-site if needed for Wi-Fi survey, trade shows, etc.

HiveRadar Custom Connectors
HiveRadar Battery Pack

HiveRadar Survey Battery

Battery is our core component and the custom Lithium Iron Phosphate (LiFePo4) battery chemistry is an advanced technology which is lighter, safer and longer lasting than other rechargeable batteries. The HiveRadar battery can power an access point for up to 21 hrs*.

Specifications

Case Dimensions: L22″ x W14″ x H9″ (55.9cm x 35.6cm x 22.9cm)

Weight without Access Point: 20.5lbs (9.3kg)

Power Pack: 100wh LiFePo4 Battery

AP Power Source: 12VDC & PoE/PoE+

Run Time: Up to 21 hours on DC /Up to 9 hours on PoE+

AP Mounting Height: 9′ (2.74 metres)

Mounting Scenario: Ceiling or Wall Mount

Ethernet for Backhaul: Included

Cable: DC/Ethernet

Optional Accessories: Tethering Kit, Additional Battery

Case Study

PCCW Global use HiveRadar to streamline AP-on-a-stick surveys

PCCW Global - HiveRadar Case Study_Page_1

A pre-deployment survey, otherwise called an Access Point (AP)-on-a-stick survey, is an important part of the wireless design process. However, the logistics of performing them had always proven a bit of a problem for the PCCW Global wireless team.

Wireless Network Engineer, Philip Ince, explained what their challenges were.

“I was using a home-brew solution which consisted of a speaker stand. I didn’t have a battery pack, so I had to take an extension lead with me, find a plug socket, and then trail a cable along the floor to get power to the AP. Needless to say, it was messy, didn’t look professional, and didn’t give the right impression to our clients.”

Then they found the HiveRadar Wireless Site Survey Kit (WSSK).
