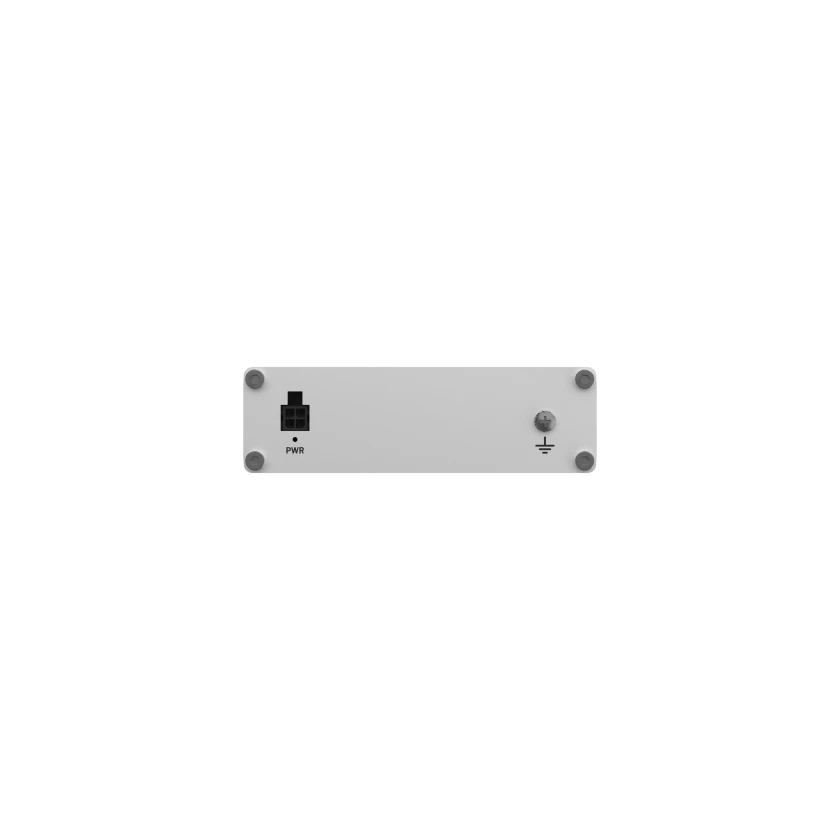

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
| Weight | 0.227 kg |
|---|---|
| Dimensions | 100 × 100 × 85 mm |
| Vendor | Teltonika Networks |
| Gigabit Ethernet Ports | 5 |
| Multi-Gigabit Ethernet Ports | No |
| SFP Ports | No |
| SFP+ Ports | No |
| RJ45 Console Port | No |
| Form Factor | DIN rail, wall mount and flat surface with additional kit |
| PoE | not IEEE 802.3af/at/bt compatible, Passive PoE input via ETH1 |
| Total PoE Budget (W) | N/A |
| PoE Capable Ports | N/A |
| Switching Capacity | 10Gbps |
| MAC Address Table | 2K |
| Full-load Power Consumption (W) | <1.8 |
