QuOmni LTE SISO, SMA

Antenna omnidirectional multiband LTE SISO, SMA

SKU: AOLS1 Categories: ,

Description

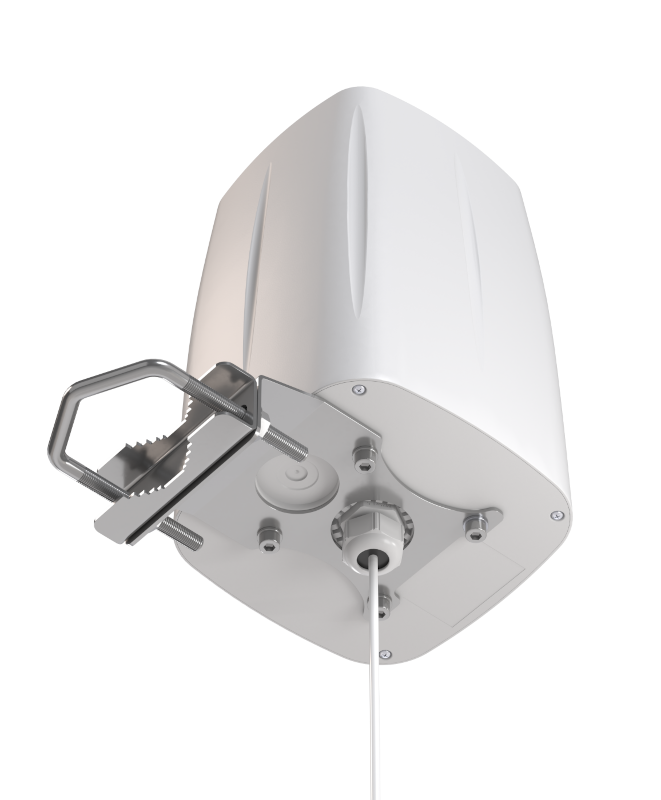

QuOmni LTE omnidirectional SISO LTE antenna working in Vertical polarization. It´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20) and frequencies 694-2700 MHz. This antenna is predicted to be installed on the buildings (on the pole or on the wall) as a client antenna or on a moving points like trains, buses, lorries, yachts or boats to receive Internet by LTE/3G. Using SMA connectors makes it compatible with most LTE devices, like Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.

Additional information

Weight1.5 kg
Dimensions160 × 160 × 240 mm
Vendor

QuWireless

Country of Origin

Poland

Frequency Rating

694 – 960 MHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz

Antenna Gain

694 – 960 MHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi

Supported LTE Bands

1, 10, 12, 13, 14, 17, 18, 19, 2, 20, 23, 25, 26, 27, 28, 29, 3, 30, 33, 34, 35, 36, 37, 38, 39, 4, 40, 41, 44, 5, 53, 59, 6, 62, 65, 66, 67, 68, 69, 7, 8, 85, 9

Supported 5G Bands

n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarisation

Vertical

Impedance

50 Ohms

Material

ABS, Aluminum, PTFE

Connector Type

SMA

Operating Temperature

-40 to 80 °C

Cable Type

LMR195

Installation Type

Wall/Pole

Indoor/Outdoor

Indoor/Outdoor

IP Rating

IP68

Cable Length

10m, 5m

Documents

    View Datasheet
