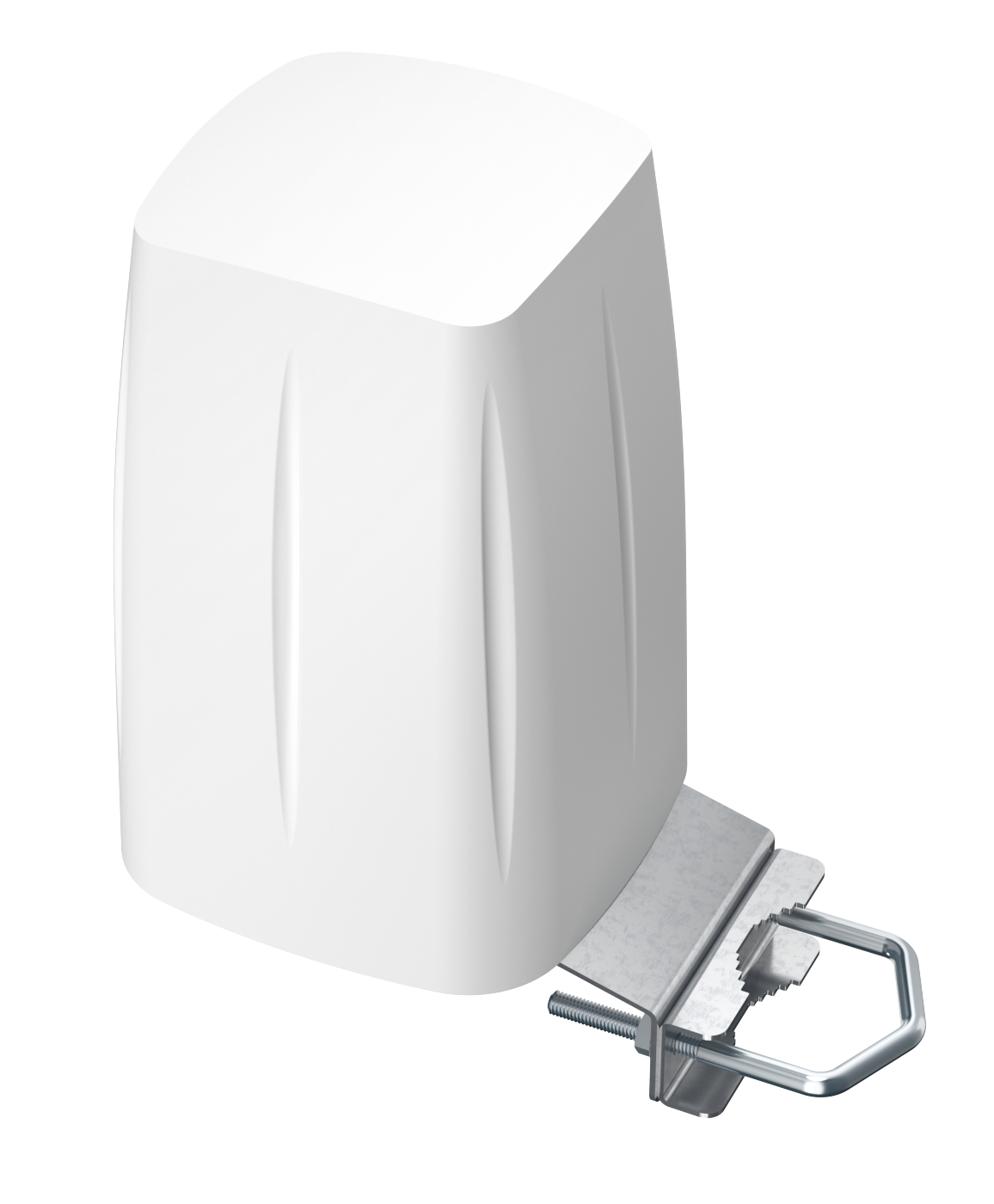

QuOmni LTE MIMO 2x2, N-female

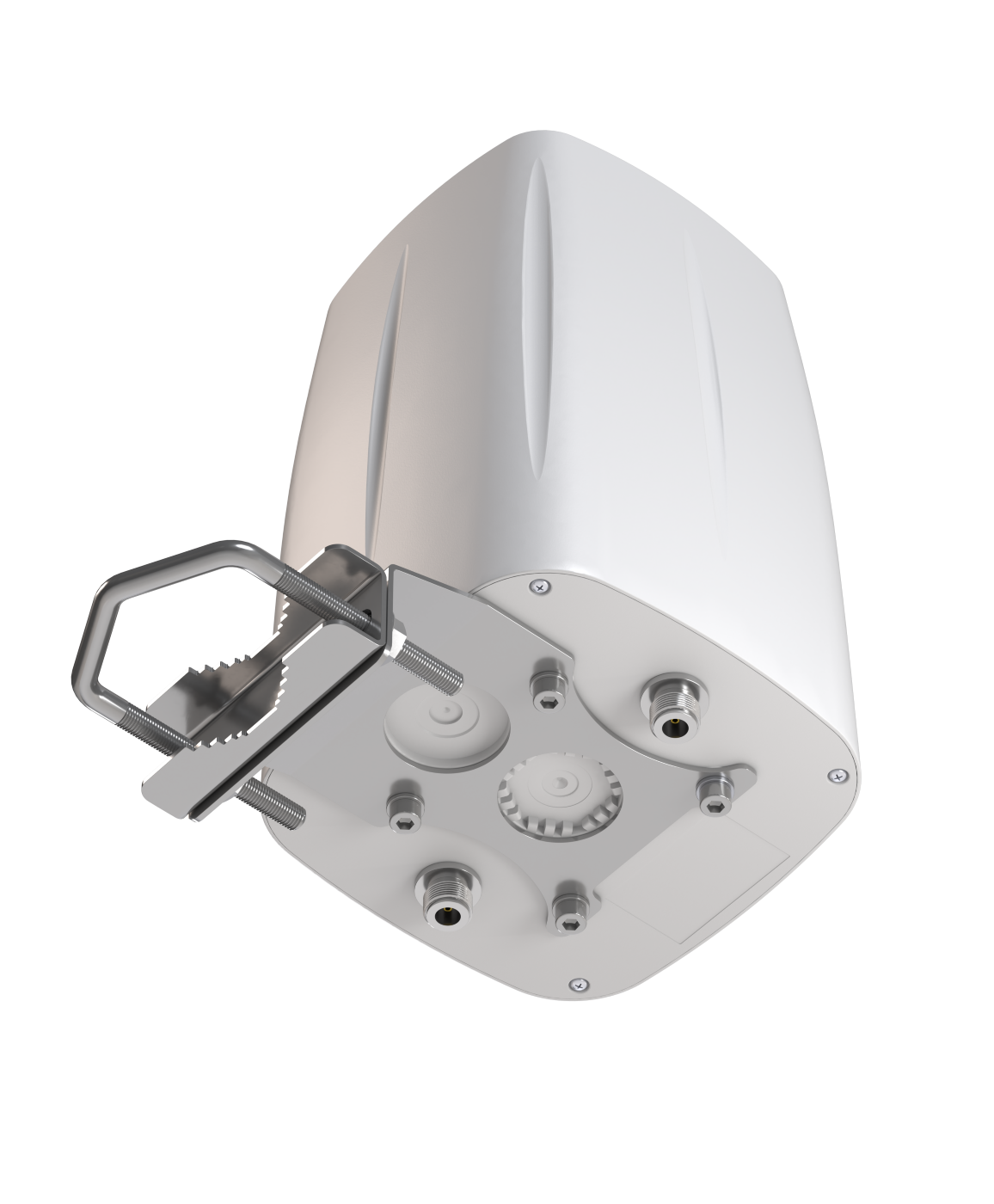

QuOmni LTE MIMO 2x2, N-female - Image 2
QuOmni LTE MIMO 2x2, N-female - Image 3

QuOmni LTE MIMO 2×2, N-female

Antenna omnidirectional multiband LTE MIMO 2×2, integrated Nf

SKU: AOLM2-N Categories: ,

Description

QuOmni LTE omnidirectional MIMO 2×2 LTE outdoor antenna operates with vertical polarization and is designed for LTE/3G/2G connections. It supports various popular LTE bands (such as 3, 7, 20) across frequencies ranging from 694 MHz to 2700 MHz.

This versatile antenna can be mounted on either on pole or wall. It can be used as an outdoor client antenna, or it can be installed on mobile platforms like trains, buses, trucks, yachts, and boats to enable LTE/3G internet reception.

It is fully compatible with a range of Teltonika products, including the RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, as well as other MIMO 2×2 LTE/3G/2G modems and routers.

Additional information

Weight1.5 kg
Dimensions160 × 160 × 240 mm
Vendor

QuWireless

Country of Origin

Poland

Frequency Rating

694 – 960 MHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz

Antenna Gain

694 – 960 MHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi

Supported LTE Bands

1, 10, 12, 13, 14, 17, 18, 19, 2, 20, 23, 25, 26, 27, 28, 29, 3, 30, 33, 34, 35, 36, 37, 38, 39, 4, 40, 41, 44, 5, 53, 59, 6, 62, 65, 66, 67, 68, 69, 7, 8, 85, 9

Supported 5G Bands

n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarisation

Vertical

Impedance

50 Ohms

Material

ABS, Aluminum, PTFE

Connector Type

Integrated Nf

Operating Temperature

-40 to 80 °C

Installation Type

Wall/Pole

Indoor/Outdoor

Indoor/Outdoor

IP Rating

IP68

Documents

    View Datasheet
