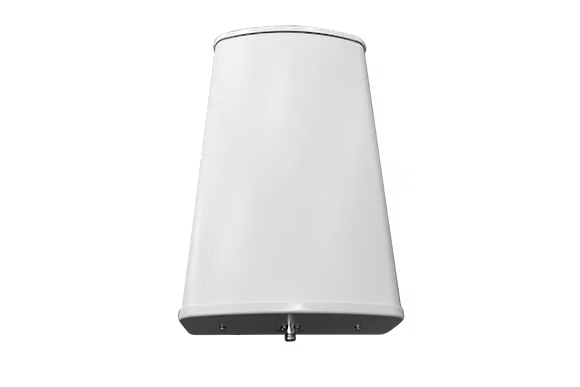

Optimized for targeted coverage, the 12dB gain Sector Panel Antenna with its sectorized design efficiently directs signals to specific areas. Ideal for dense environments, it ensures improved connectivity for transmit and receive concentrated signals in one direction. This antenna is easy to install, making it a key component for enhancing network performance in designated sectors.
| Weight | 5.2 kg |
|---|---|
| Dimensions | 500 × 280 × 125 mm |
| Vendor | Multiboost |
| Country of Origin | Czechia |
| Polarisation | Linear Vertical |
| Frequency Rating | 700~960 MHz | 1710~2700 MHz | 3300~3800 MHz |
| Antenna Gain | 10 ±1 dBi | 12 ±1 dBi | 12 ±1 dBi |
| Beamwidth - Horizontal | 65 ±5° |
| Beamwidth - Vertical | 32 ±5° |
| Front-to-back ratio | >21 dB, >23 dB, >23 dB |
| VSWR | <1.80 |
| Material | PVC |
| IP Rating | IP65 |
| Connector Type | N Female |
| Impedance | 50 Ohms |
| Documents |

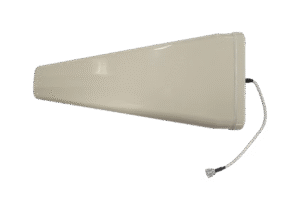

The LPDA4 Log Periodic Dipole Array Directional Antenna is a critical element in the Multiboost setup, providing >10dB linear gain up to 4GHz signals. Its role in capturing and directing weak outdoor signals towards the repeater is essential.

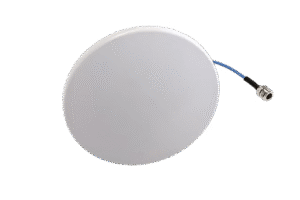

The FDOA Flat Disc Omni Directional Antenna is designed for reliable indoor coverage, operating up to 3.8GHz with a 3dB gain. Its 360° horizontal beamwidth ensures uniform signal distribution across large indoor areas, making it highly effective in eliminating coverage gaps. With a slim, unobtrusive design and simple ceiling-mounted installation, the FDOA is ideal for seamless integration into any indoor environment.
The FPIA6, a flat panel indoor antenna, operates up to 4GHz with a 6dB gain, enhancing indoor signal strength. Ideal for Multiboost systems, it offers a sleek design for aesthetic indoor integration. Easy installation and compatibility with indoor wireless systems make it perfect for eliminating blind spots and ensuring consistent indoor coverage.
The MHDA Mexican Hat Dome Indoor Antenna is a key component in enhancing indoor coverage within the Multiboost network. Operating up to 4GHz with a 3dB gain, it ensures an even distribution of the amplified signal, effectively eliminating dead zones and boosting call and data quality in indoor spaces.
The LPDA4 Log Periodic Dipole Array Directional Antenna is a critical element in the Multiboost setup, providing >10dB linear gain up to 4GHz signals. Its role in capturing and directing weak outdoor signals towards the repeater is essential.
The FPIA6, a flat panel indoor antenna, operates up to 4GHz with a 6dB gain, enhancing indoor signal strength. Ideal for Multiboost systems, it offers a sleek design for aesthetic indoor integration. Easy installation and compatibility with indoor wireless systems make it perfect for eliminating blind spots and ensuring consistent indoor coverage.
The FDOA Flat Disc Omni Directional Antenna is designed for reliable indoor coverage, operating up to 3.8GHz with a 3dB gain. Its 360° horizontal beamwidth ensures uniform signal distribution across large indoor areas, making it highly effective in eliminating coverage gaps. With a slim, unobtrusive design and simple ceiling-mounted installation, the FDOA is ideal for seamless integration into any indoor environment.
