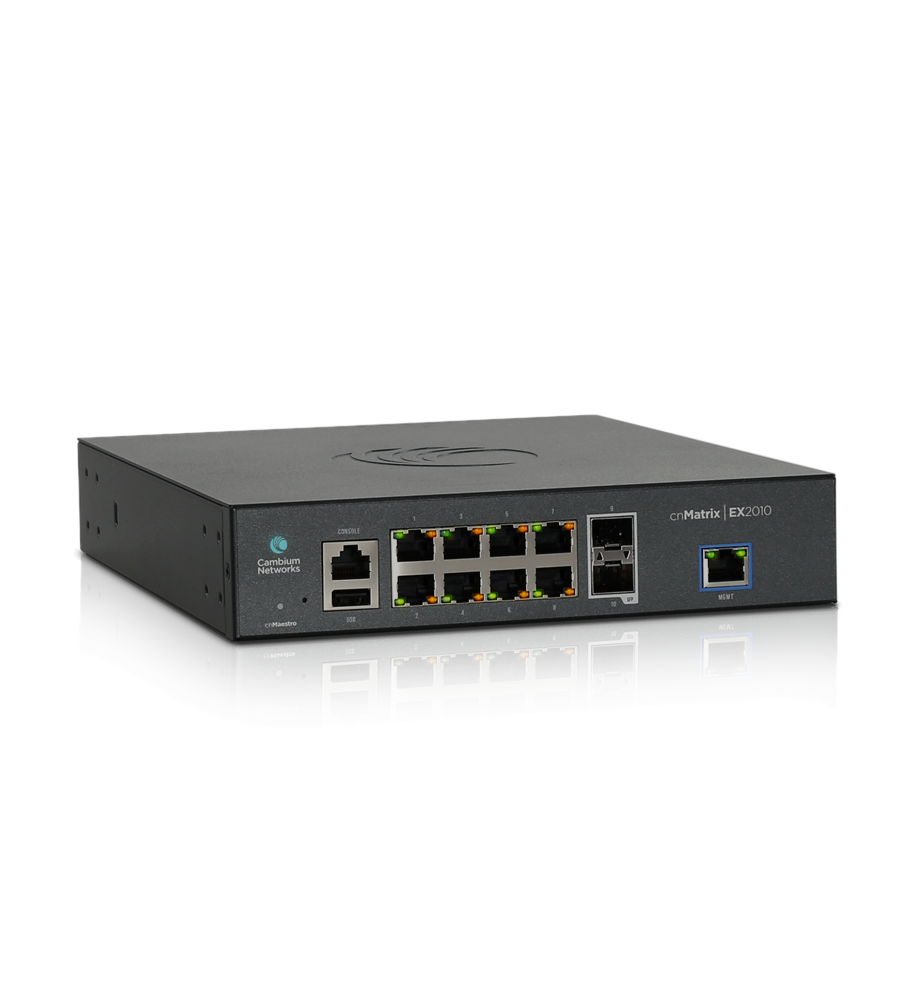

cnMatrix™ EX2010 switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2010.
| Dimensions | 250 × 250 × 44 mm |
|---|---|
| Vendor | Cambium Networks |
| Switch Class | Layer 3 |
| Gigabit Ethernet Ports | 8 |
| SFP Ports | 2 |
| RJ45 Console Port | Yes |
| Form Factor | 1U |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate (Mpps) | 120 |
| MAC Address Table | 16K |
| Flash Storage | 128MB |
| SDRAM | 512MB |
| Full-load Power Consumption (W) | 9.88 |
cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
