2.4/5/6 GHz 4/6/6 dBi 10 Element Indoor Omni Antenna with 10 MPC

2.4/5/6 GHz 4/6/6 dBi 10 Element Indoor Omni Antenna with 10 MPC

ATS-02624 (former catalog number ATS-OO-2456-466-10MPC-36). The AccelTex Solutions Tri-Band 10-Element indoor omnidirectional antenna with 4MPC and 6 MPC connectors is compatible with the Mist AP45E to achieve desired coverage in your indoor. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor applications. The Juniper/Mist AP45E-WW is approved in most countries. Please check with Juniper/Mist directly to verify regulations in your specific area.

SKU: ATS-02624 Categories: ,

Additional information

Dimensions165.1 × 165.1 × 160 mm
Vendor

AccelTex Solutions

Country of Origin

China

Antenna Gain

4/6/6 dBi

Beamwidth - Horizontal

360°/360°/360°

Beamwidth - Vertical

105°/105°/105°

Cable Length

910mm

Cable Type

RG316

Connector Type

MPC

Frequency Rating

2.4-2.48/5.15-5.85/6-7.125 GHz

Antenna Type

Omni Antenna

Indoor/Outdoor

Indoor

Installation Type

Flush Mount to Wall or Articulating Arm Mount

Radome Material

ABS

Number of Leads

10

Polarisation

Vertical

Wi-Fi Standard

802.11ax (Wi-Fi 6)

Voltage Ratio

<2.0


View Datasheet

You may also like…

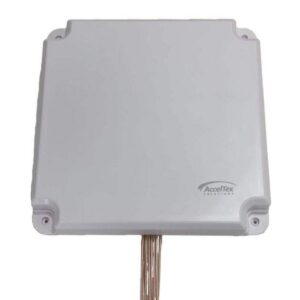

  • 2.4/5/6 GHz 7 dBi 10 Element Indoor Patch Antenna with 10 MPC
